Navigation: CUSTOM REPORTING > TQ Dashboard > Add a Chart to Existing Dashboard > Axes > X-Axis

General X-Axis Settings

Scroll Prev Top Next More

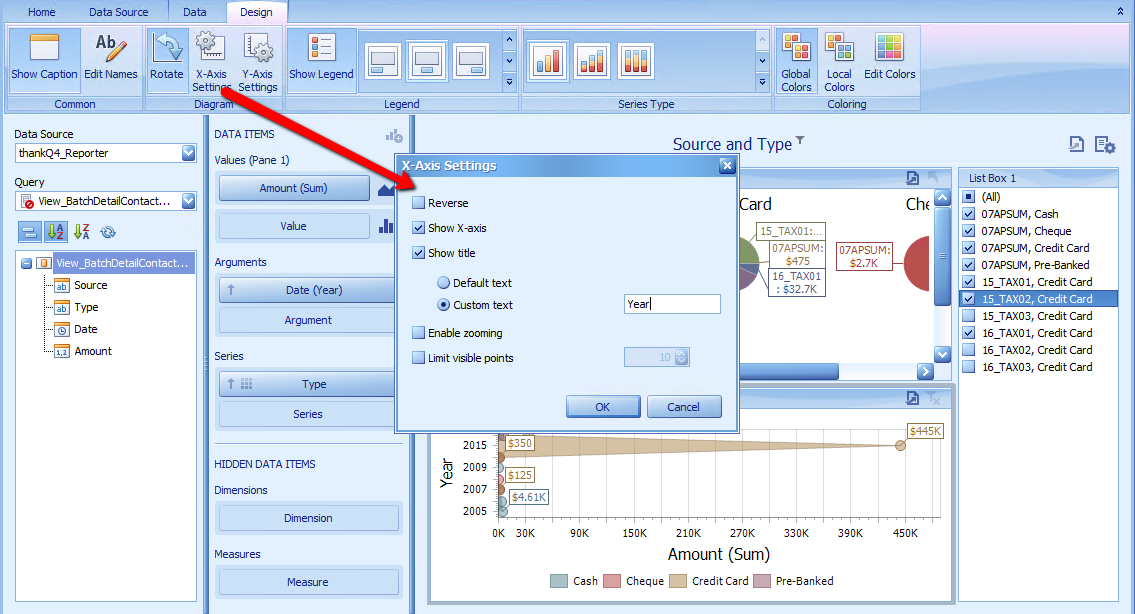

1.Click the X-Axis Settings button in the Diagram section of the Design tab

2.Click Show title

3.Click Custom text

4.Enter Year, click OK

TQDASH~1_img175

Reverse	Allows you to reverse the X-axis. If the X-axis is reversed, its values are ordered from right to left.
Show X-axis	Allows you to hide and show the X-axis.
Show title	Allows you to hide and show the X-axis title. You can choose whether to use the default text or specify a custom string.
Enable zooming	Allows you to enable zooming for the X-axis. The X-axis' scroll bar provides the capability to perform navigation in the zoomed diagram.
Limit visible points	Allows you to limit the number of points displayed on the chart's diagram along the X-axis. The X-axis' scroll bar provides the capability to perform navigation if the number of all points exceeds the number of visible points.
